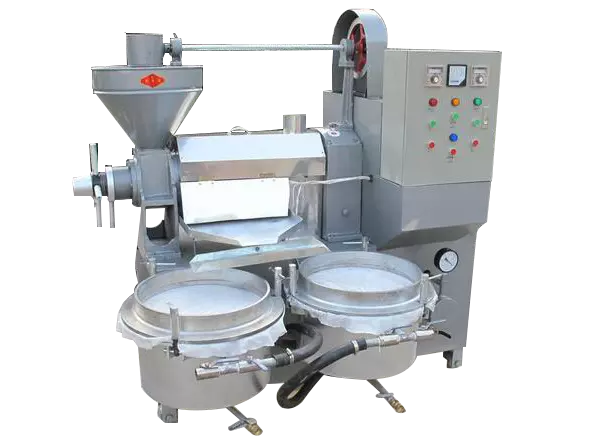

Rapeseed Oil Press Machine With Oil Filter Press/Oil press Equipment
Introduction of Rapeseed Oil Press Machine With Oil Filter Press/Oilpress Equipment
New generation screw oil press machine is screw-driven oil making machine that used to extract oil from seeds and kernels for edible purposes.CRS series oil press machine is an advanced oil seed processing machine,characterized by high oil output rate,cold& hot press in one machine and one-time squeeze.
The oil press machine can be used to process various oil seeds, such as rape seeds, peanut soybean,sesame,sunflower seed, copra, vegetable seeds.
Advantage:
(1).After squzzing the impurity of oil must be less than 0.2% ;
(2).Recycling system save power and money ;
(3).Lower oil waste.
(4). patents of oil press technology.
(5). Full inspection before delivery, quality pass rate more than 98%.
(6). More than 300 professional workers. 10% of them are mechanical engineers technicians.
(7). Widely used in our life, have been exported to more than 70 countries.
Technical parameters of Rapeseed Oil Press Machine With Oil Filter Press/Oilpress Equipment
| Model | 6YL-80 | 6YL-100 | 6YL-120 | 6YL-130 | 6YL-160 |
| Speed of press screw(r/min) | 30-40 | 30-40 | 30-40 | 28-40 | 28-40 |
| Boundary dimension(mm) | 1650*1150*1750 | 900*1300*1850 | 2200*1650*2100 | 2300*1600*2100 | 2400*1700*2100 |
| Capacity(kg/h) | 80-150 | 150-250 | 200-300 | 300-400 | 400-600 |
| Heater(kw) | 2 | 3 | 3.3 | 3.8 | 4 |
| Residual oil rate | 6-7% | 6-7% | 6-7% | 6-7% | 6-7% |
| Weight(kg) | 680 | 870 | 1280 | 1420 | 1600 |
Operating principle:
1.Material enters the extruding chamber from the hopper.
2.There is quite strong friction among press screw, chamber and the oil materials.
3.Root diameter of the pressing screw carries larger from one end to the other.
4.Last,helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.

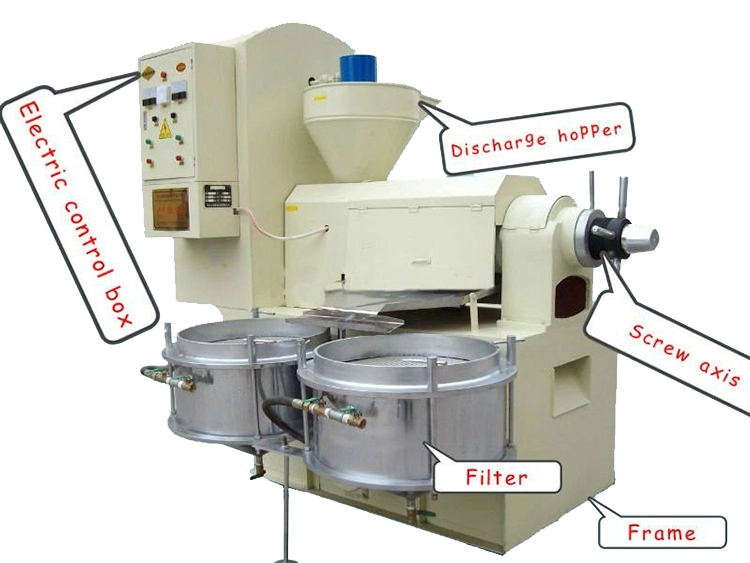

Part of Rapeseed Oil Press Machine With Oil Filter Press/Oilpress Equipment
(1) Electric control box:Fully automatic control of the machine saves manpower and efficiency.
(2) Discharge hopper:Material enters from here.
(3) Screw axis:Press the material to extract the oil from the material.
(4) Filter:Filter out impurities in the oil to improve the quality of the oil.
(5) Frame:Support the machine to ensure that the machine works properly.
